8-bit FLASH microcontroller featuring an 8b data bus width and a maximum operating frequency of 48MHz. This surface mount device offers 128KB of FLASH memory and 3904B of RAM, with 68 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART, EBI/EMI interfaces, 14 PWM channels, 5 timers/counters, and a watchdog timer. Operating voltage ranges from 2V to 3.9V, with a maximum power dissipation of 1W and an operating temperature range of -40°C to 85°C.
Frequency48MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F87J11T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
128KB
Frequency
48MHz
Interface
I2C, SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
68
Number of Programmable I/O
68
Number of PWM Channels
14
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
3904B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18J
Termination
SMD/SMT
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F87J11T-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F87J11T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

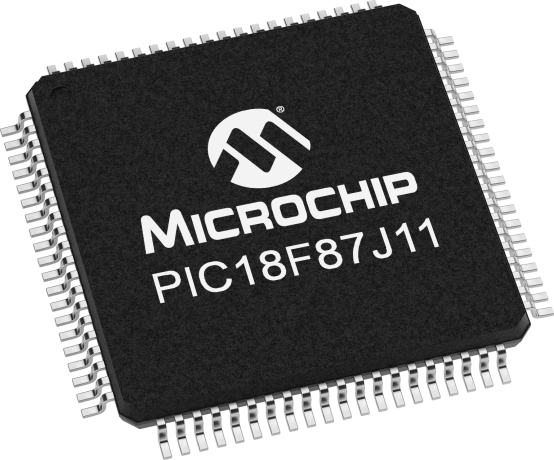

Product Images
