8-bit microcontroller featuring a PIC CPU core, operating at up to 64MHz. This CMOS device offers 128KB of FLASH memory and 4KB of RAM, with 69 programmable I/Os. Integrated peripherals include 10 PWM channels, 11 timers/counters, and multiple communication interfaces such as I2C, SPI, and UART. Packaged in an 80-pin TQFP, it supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency64MHz
PackageTQFP
Current910uA
Quick Jump:
Technical Specifications
Microchip PIC18F87K90-I/PTRSL technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.041inch
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
0.472inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
24
Number of Bits
8
Number of I/Os
69
Number of I2C Channels
2
Number of Programmable I/O
69
Number of PWM Channels
10
Number of SPI Channels
2
Number of Timers/Counters
11
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Supply Current
910uA
Watchdog Timer
Yes
Width
0.472inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F87K90-I/PTRSL Datasheet
Download the complete datasheet for Microchip PIC18F87K90-I/PTRSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

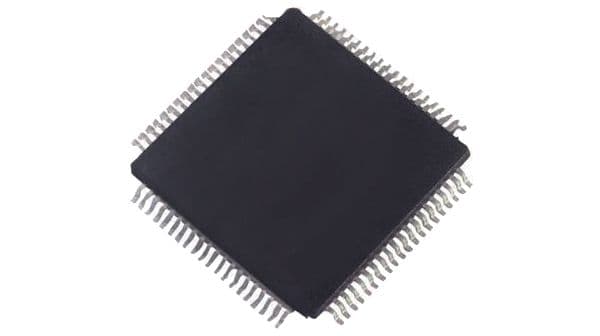

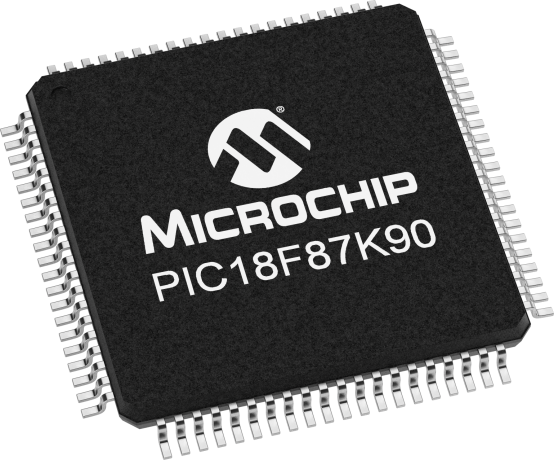

Product Images
