8-bit RISC microcontroller featuring 16KB FLASH memory and 512B RAM. Operates at up to 64MHz with an internal oscillator. Supports I2C, SPI, and UART/USART interfaces, with 17 I/Os and 4 timers. Packaged in a 20-pin SOIC, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C and a maximum supply voltage of 3.6V. Includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency64MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC18LF14K22-E/SO technical specifications.
General
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Interface | I2C, SPI, UART, USART |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 16KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Number of I/Os | 17 |
| Number of Programmable I/O | 18 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 38 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 18K |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18LF14K22-E/SO Datasheet
Download the complete datasheet for Microchip PIC18LF14K22-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

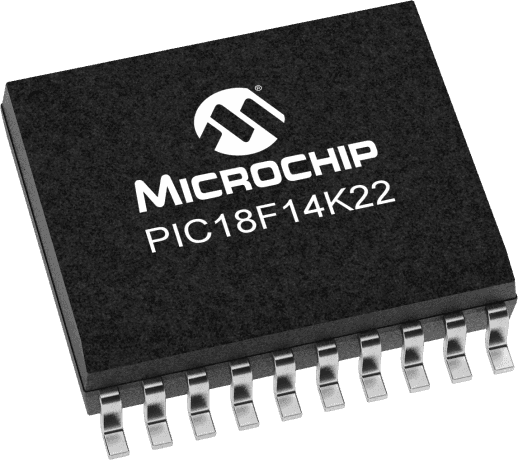

Product Images
