8-bit RISC microcontroller featuring 16KB FLASH memory and 512B RAM, operating at up to 64MHz. This surface mount SOIC-20 package offers 18 programmable I/Os, 12 ADC channels, and 4 PWM channels. Integrated peripherals include I2C, SPI, USART, UART, LIN interfaces, and a watchdog timer. Designed for a wide operating temperature range of -40°C to 85°C with supply voltages from 1.8V to 3.6V.
Frequency64MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF14K22-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
16KB
Frequency
64MHz
Height
2.35mm
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Length
12.8mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF14K22-I/SO Datasheet
Download the complete datasheet for Microchip PIC18LF14K22-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

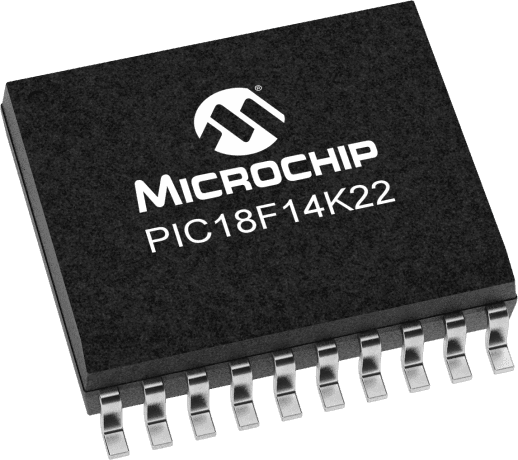

Product Images
