8-bit FLASH microcontroller featuring an 8b data bus width and a 48MHz core frequency. This surface mount device, housed in an SSOP package, offers 14 I/Os and 18 programmable I/Os. Integrated peripherals include I2C, SPI, USB, UART, and USART interfaces, alongside 4 timers/counters and a watchdog timer. Operating voltage ranges from 2.7V to 3.6V, with an internal oscillator and 16KB of FLASH memory.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF14K50T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Interface
I2C, SPI, USB, UART, USART
Max Frequency
32kHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
14
Number of Programmable I/O
18
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF14K50T-I/SS Datasheet
Download the complete datasheet for Microchip PIC18LF14K50T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

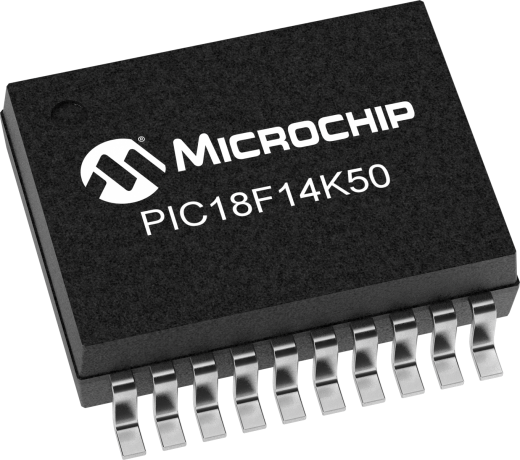

Product Images
