8-bit FLASH microcontroller featuring an 8b data bus width and a maximum frequency of 40MHz. This surface mount device offers 32KB of FLASH memory and 1.5KB of RAM, with 25 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 4 timers/counters, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operates within a 2V to 5.5V supply voltage range and a temperature range of -40°C to 85°C.
Frequency40MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF2523-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF2523-I/ML Datasheet
Download the complete datasheet for Microchip PIC18LF2523-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

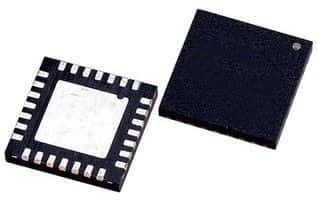

Product Images
