8-bit Flash Microcontroller, operating at up to 40MHz, featuring 32KB Flash memory and 1.5KB RAM. This surface-mount SOIC-28 package offers 25 I/O pins, including 36 programmable I/O, and supports I2C, SPI, CAN, and UART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, HLVD, and four timers/counters. Operates from 2V to 5.5V with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF2580-I/SO technical specifications.
General
Access Time
40us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF2580-I/SO Datasheet
Download the complete datasheet for Microchip PIC18LF2580-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

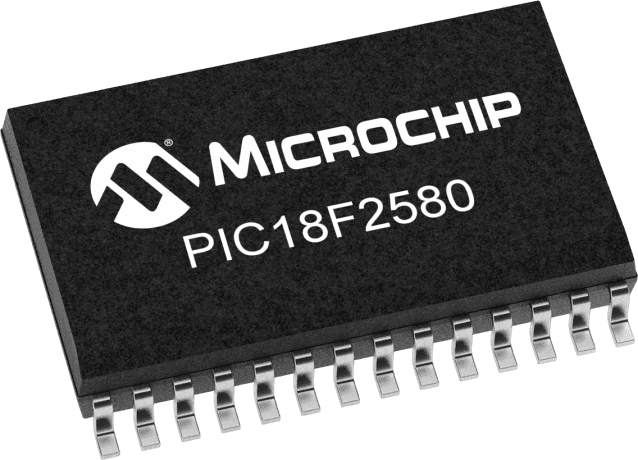

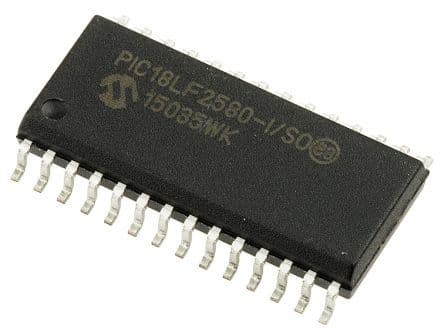

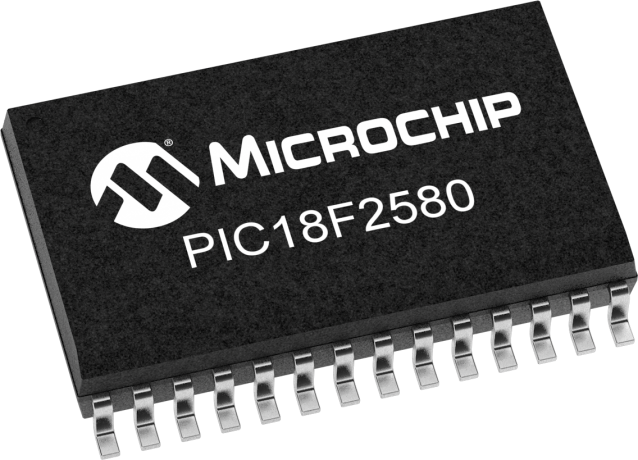

Product Images
