8-bit Flash Microcontroller (MCU) featuring an 8b PIC core architecture operating at up to 48MHz. This surface mount device offers 64KB of FLASH memory, 3776B of RAM, and 16 programmable I/Os. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART/USART, 10 ADC channels, 2 PWM channels, and 5 timers/counters, along with Brown-out Detect/Reset, POR, and WDT. Encased in an SSOP-28 package with dimensions of 10.5mm length, 5.6mm width, and 1.85mm height, it supports a supply voltage range of 2V to 3.6V and operates from -40°C to 85°C.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF26J11-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
48MHz
Height
1.85mm
Interface
I2C, SPI, UART, USART
Length
10.5mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
16
Number of I2C Channels
2
Number of Programmable I/O
16
Number of PWM Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF26J11-I/SS Datasheet
Download the complete datasheet for Microchip PIC18LF26J11-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

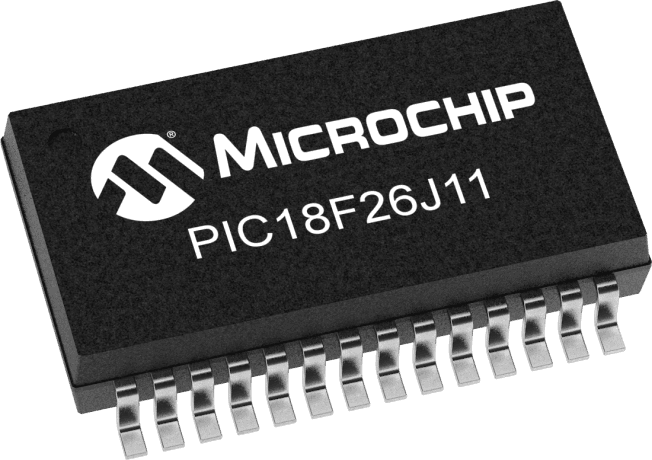

Product Images
