8-bit FLASH microcontroller featuring an 8-bit PIC core architecture, operating at up to 48MHz. This surface mount device offers 24KB of FLASH memory and 2KB of RAM, with 35 programmable I/O pins. Integrated interfaces include I2C, SPI, USB, UART, and USART. The microcontroller supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 2V to 5.5V. Key peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer.
Frequency48MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF4455-I/ML technical specifications.
General
Access Time
48us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
35
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF4455-I/ML Datasheet
Download the complete datasheet for Microchip PIC18LF4455-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

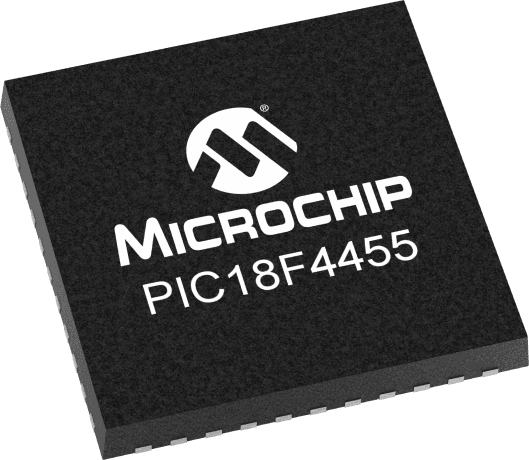

Product Images
