8-bit RISC microcontroller featuring 16KB FLASH program memory and 768B RAM. Operates at up to 64MHz with an 8b data bus width and internal oscillator. Offers 35 I/Os, including 36 programmable I/Os, and supports I2C, SPI, USART, and UART interfaces. Includes 7 timers/counters and peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and HLVD. Operates from 1.8V to 3.6V supply voltage with a temperature range of -40°C to 85°C. Packaged in TQFP.
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18LF44K22-I/MV technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, USART, UART
Max Frequency
64MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
7
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF44K22-I/MV Datasheet
Download the complete datasheet for Microchip PIC18LF44K22-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

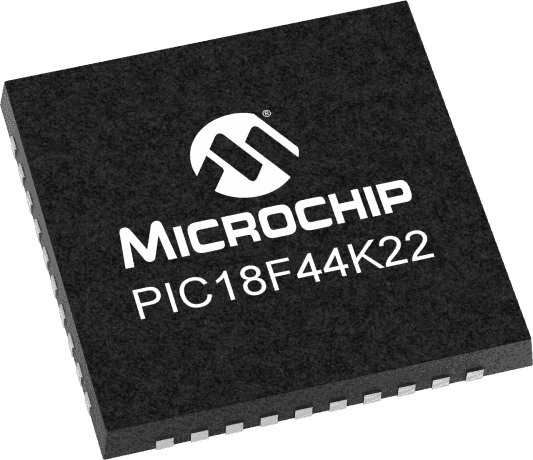

Product Images
