Microchip
PIC18LF4510-I/P
8-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDIP40, 0.600 INCH, LEAD FREE, PLASTIC, DIP-40
Frequency40MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18LF4510-I/P technical specifications.
General
Access Time
40us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of Programmable I/O
36
Number of Timers/Counters
4
Package Quantity
10
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF4510-I/P Datasheet
Download the complete datasheet for Microchip PIC18LF4510-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

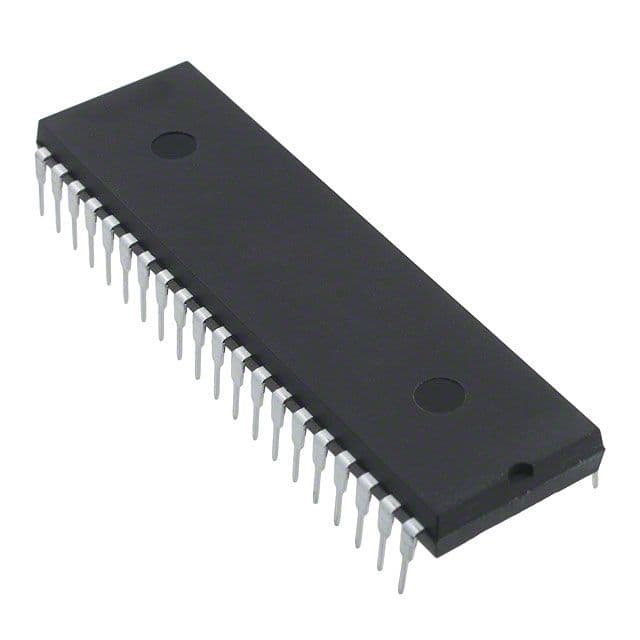

Product Images
