8-bit microcontroller (MCU) featuring 32KB FLASH memory and 1.5KB RAM. Operates at up to 40MHz with an 8-bit data bus width. Includes I2C, SPI, and UART interfaces, 13 ADC channels, and 36 programmable I/Os. Packaged in a 40-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency25MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18LF4523-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
25MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Length
53.21mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of ADC Channels
13
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF4523-I/P Datasheet
Download the complete datasheet for Microchip PIC18LF4523-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

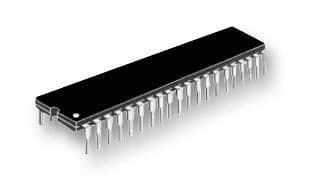

Product Images
