8-bit RISC microcontroller featuring 32KB FLASH memory and 1.5KB RAM. Operates at up to 16MHz with I2C, SPI, and USART/UART interfaces. Offers 35 I/Os, 7 timers/counters, and integrated peripherals including PWM and Watchdog Timer. Supports a supply voltage range of 1.8V to 3.6V, with an operating temperature range of -40°C to 125°C. Surface mountable in a TQFP package.
Frequency16MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF45K22-E/MV technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, USART, UART
Max Frequency
16MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
7
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF45K22-E/MV Datasheet
Download the complete datasheet for Microchip PIC18LF45K22-E/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

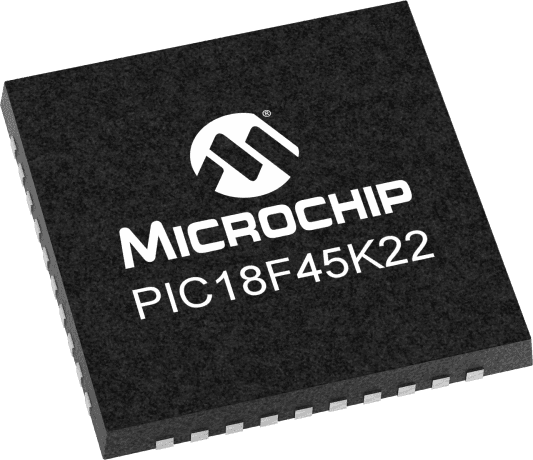

Product Images
