8-bit RISC microcontroller featuring a 64MHz core frequency and 32KB FLASH memory. This integrated circuit offers 35 I/O pins, including 36 programmable I/O, and supports I2C, SPI, and UART interfaces. It operates from 1.8V to 3.6V, with a maximum power dissipation of 1W and an operating temperature range of -40°C to 85°C. Key peripherals include 14 PWM channels, 7 timers/counters, and 30 A/D converter channels. The device is packaged in a TQFP with lead-free, RoHS compliant construction.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18LF45K22-I/PT technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.041inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
0.393inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
30
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
36
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
0.394inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF45K22-I/PT Datasheet
Download the complete datasheet for Microchip PIC18LF45K22-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

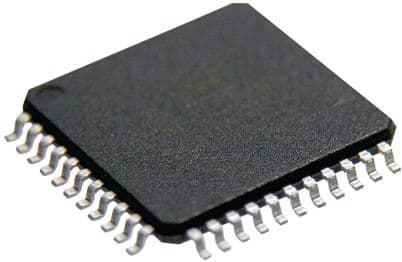

Product Images
