8-bit microcontroller featuring 40MHz clock speed and 64KB FLASH memory. This through-hole component offers 36 programmable I/Os, supporting I2C, SPI, and UART interfaces. Operates from 2V to 5.5V with a temperature range of -40°C to 85°C. Includes 13 ADC channels, 4 timers/counters, and integrated peripherals like WDT and PWM.
Frequency40MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18LF4620-I/P technical specifications.
General
Access Time
40us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3986B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF4620-I/P Datasheet
Download the complete datasheet for Microchip PIC18LF4620-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

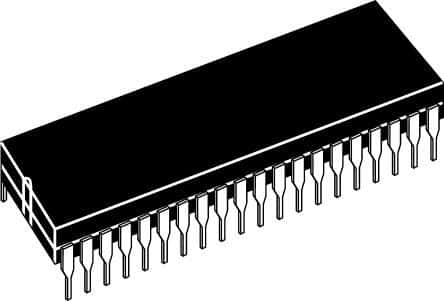

Product Images
