8-bit RISC microcontroller featuring 40MHz operation and 64KB FLASH memory. This surface mount device offers 3.25KB RAM, 36 I/O pins, and supports I2C, SPI, CAN, and UART interfaces. Includes 11 A/D converter channels, 2 PWM channels, and 4 timers. Operates from 2V to 5.5V with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
Current1.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF4680-I/PT technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
44
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.3mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF4680-I/PT Datasheet
Download the complete datasheet for Microchip PIC18LF4680-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

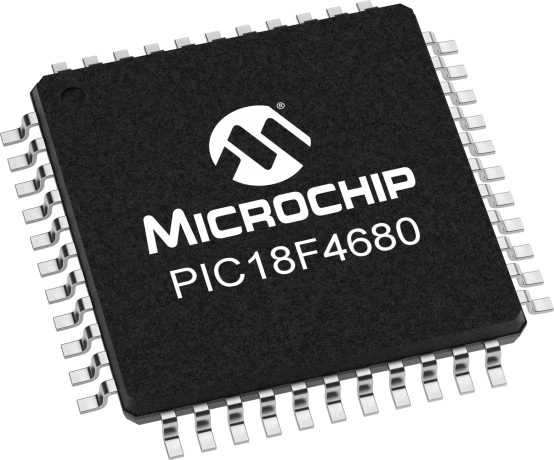

Product Images
