8-bit FLASH microcontroller featuring an 8b data bus width and a core architecture. Operates at up to 48MHz with I2C, SPI, UART, and USART interfaces. Includes 64KB FLASH memory, 3776B RAM, and 34 I/Os, with 22 programmable. Peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. This surface mount component is housed in a QFN package and operates within a temperature range of -40°C to 85°C.
Frequency48MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF46J11T-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Interface
I2C, SPI, UART, USART
Max Frequency
31kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
34
Number of Programmable I/O
22
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
3776B
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF46J11T-I/ML Datasheet
Download the complete datasheet for Microchip PIC18LF46J11T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

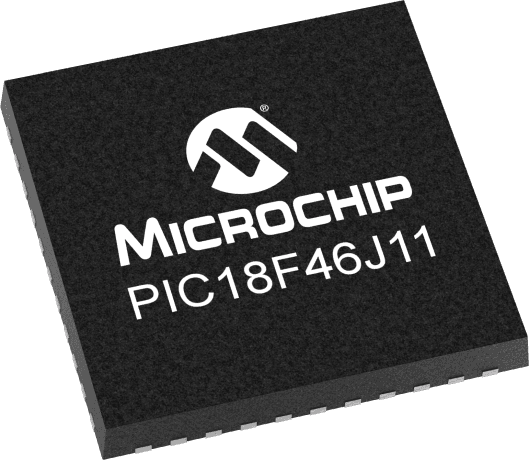

Product Images
