8-bit RISC microcontroller featuring 64KB FLASH memory and 3896B RAM. Operates at up to 16MHz with a 1.8V to 3.6V supply voltage range. Offers 35 I/O pins, including 36 programmable I/O, and supports I2C, SPI, USART, and UART interfaces. Includes 7 timers/counters and a watchdog timer, with an operating temperature range of -40°C to 85°C. Packaged in a QFN EP, tape and reel, lead-free plastic.
Frequency16MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC18LF46K22T-I/ML technical specifications.
General
| Package/Case | QFN EP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Interface | I2C, SPI, USART, UART |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 35 |
| Number of Programmable I/O | 36 |
| Number of Timers/Counters | 7 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 3896B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18LF46K22T-I/ML Datasheet
Download the complete datasheet for Microchip PIC18LF46K22T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

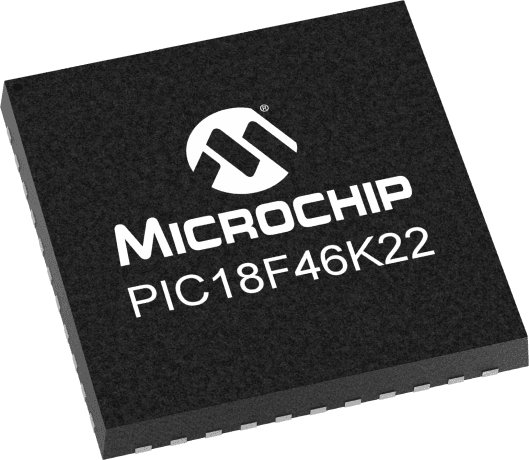

Product Images
