8-bit FLASH microcontroller featuring an 8b data bus width and a maximum operating frequency of 48MHz. This PIC microcontroller offers 128KB of FLASH memory and 3760B of RAM, with 34 I/O pins and 5 programmable I/O pins. Integrated peripherals include I2C (2 channels), SPI (2 channels), USART, UART, 8 timers/counters, and a watchdog timer. Operating from 2V to 3.6V, it supports an operating temperature range of -40°C to 85°C and is housed in a 44-pin TQFP package measuring 10mm x 10mm with a 1.05mm height.
Frequency48MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18LF47J13-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Length
10mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of ADC Channels
13
Number of I/Os
34
Number of I2C Channels
2
Number of Programmable I/O
5
Number of SPI Channels
2
Number of Timers/Counters
8
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
3760B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF47J13-I/PT Datasheet
Download the complete datasheet for Microchip PIC18LF47J13-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

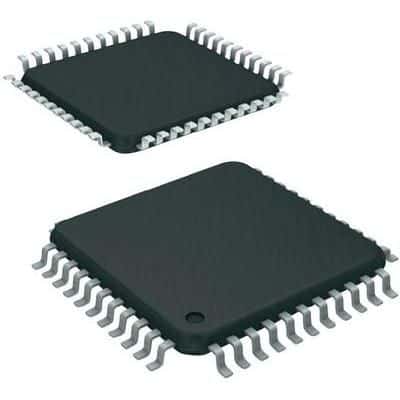

Product Images
