8-bit RISC microcontroller featuring 128KB FLASH memory and 3.75KB RAM. Operates at 25MHz with a maximum frequency of 40MHz, supporting a supply voltage range of 2V to 5.8V. Includes 68 programmable I/Os, 16 ADC channels, 5 PWM channels, and multiple communication interfaces including I2C, SPI, and 2 UARTs. Packaged in a TQFP with a 0.5mm lead pitch, suitable for surface mounting. Features include Brown-out Detect/Reset, POR, WDT, LVD, and 5 timers/counters.
Frequency25MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF8720-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
25MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART, EBI/EMI
Lead Pitch
0.5mm
Length
12.25mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.8V
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
8
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
5.5V
Oscillator Type
External
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
RAM Size
3.75KB
Reach SVHC Compliant
No
Series
PIC® 18F
Watchdog Timer
Yes
Width
12.25mm
Compliance
RoHS
Not Compliant
Datasheet
Microchip PIC18LF8720-I/PT Datasheet
Download the complete datasheet for Microchip PIC18LF8720-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

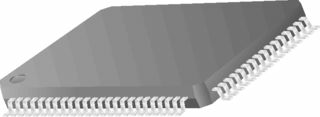

Product Images
