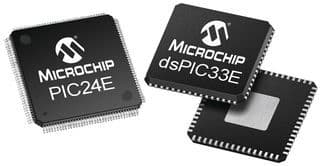

16-bit microcontroller featuring a 60MHz core, 280KB FLASH memory, and 28KB RAM. This PIC microcontroller offers 122 programmable I/Os, 32 ADC channels, and 16 PWM channels. Integrated peripherals include I2C, SPI, USB, CAN, UART, IrDA, USART, LIN, DMA, and a watchdog timer. Operates from 3V to 3.6V with a temperature range of -40°C to 85°C. Packaged in a 144-pin TQFP with dimensions of 16mm x 16mm x 1mm.
Sign in to ask questions about the Microchip PIC24EP256GU814-I/PH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

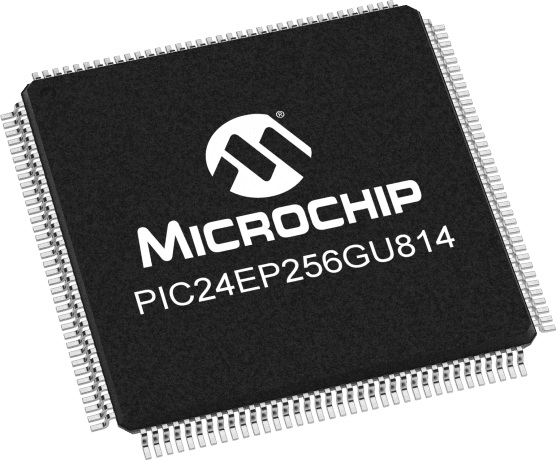

Microchip PIC24EP256GU814-I/PH technical specifications.
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 60MHz |
| Height | 1mm |
| Interface | I2C, SPI, USB, CAN, UART, IrDA, USART, LIN |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Frequency | 60MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 280KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of ADC Channels | 32 |
| Number of Bits | 16 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 122 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 122 |
| Number of PWM Channels | 16 |
| Number of SPI Channels | 4 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 4 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 90 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 28KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 24EP |
| Watchdog Timer | Yes |
| Width | 16mm |
| RoHS | Compliant |
