Microchip
PIC24EP256GU814T-I/PH
16-BIT, FLASH, 60 MHz, MICROCONTROLLER, PQFP144, 16 X 16 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-144
Frequency60MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP256GU814T-I/PH technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Interface
I2C, SPI, UART, 4-WIRE, USB, IrDA, USART
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
32
Number of I/Os
122
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
900
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
28KB
RoHS Compliant
Yes
Series
PIC® 24EP
Weight
0.04653oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP256GU814T-I/PH Datasheet
Download the complete datasheet for Microchip PIC24EP256GU814T-I/PH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

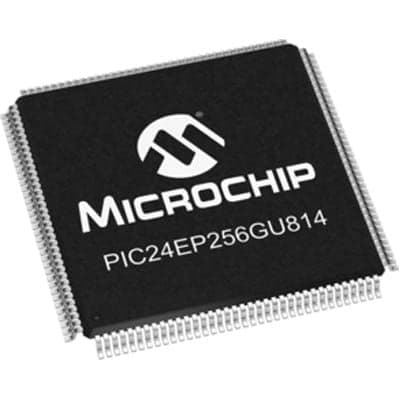

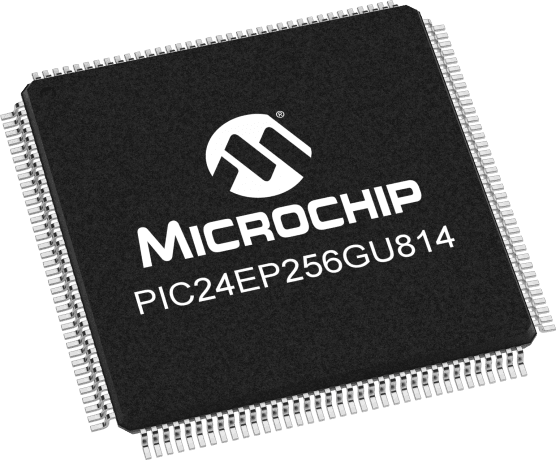

Product Images
