Microchip
PIC24EP32MC203-I/TL
16-BIT, FLASH, 70 MHz, MICROCONTROLLER, QCC36, 5 X 5 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, VTLA-36
Frequency70MHz
Quick Jump:
Technical Specifications
Microchip PIC24EP32MC203-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
16b
Frequency
70MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
60MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Number of Programmable I/O
25
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP32MC203-I/TL Datasheet
Download the complete datasheet for Microchip PIC24EP32MC203-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

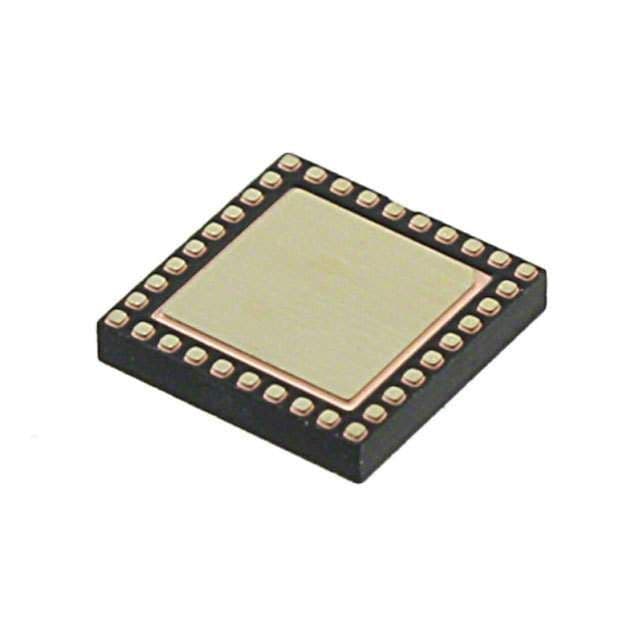

Product Images
