16-bit PIC microcontroller featuring a 60MHz core frequency and 53 programmable I/Os. This TQFP-packaged MCU offers 586KB of FLASH memory and 52KB of RAM, supporting I2C, SPI, USB, CAN, UART, IrDA, and USART interfaces. Operating from 2.95V to 3.6V, it includes 9 timers/counters and peripherals like Brown-out Detect, POR, PWM, WDT, and DMA. Designed for automotive applications with an operating temperature range of -40°C to 125°C.
Frequency60MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC24EP512GP806-E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, USB, CAN, UART, IrDA, USART
Max Frequency
60MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
586KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
52KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GP806-E/PT Datasheet
Download the complete datasheet for Microchip PIC24EP512GP806-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

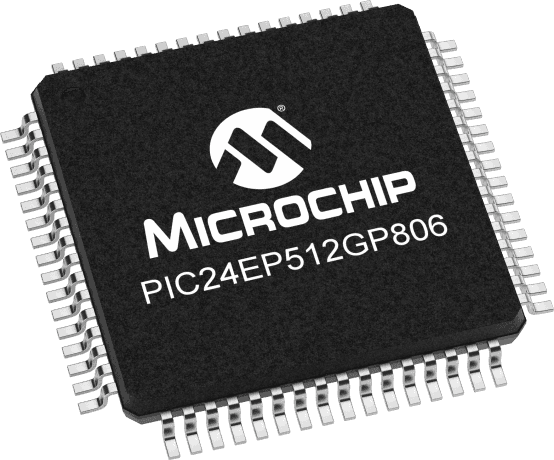

Product Images
