Microchip
PIC24EP512GU810T-I/PT
16-BIT, FLASH, 60 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100
Frequency60MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP512GU810T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of I/Os
83
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
52KB
RoHS Compliant
Yes
Series
PIC® 24EP
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GU810T-I/PT Datasheet
Download the complete datasheet for Microchip PIC24EP512GU810T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

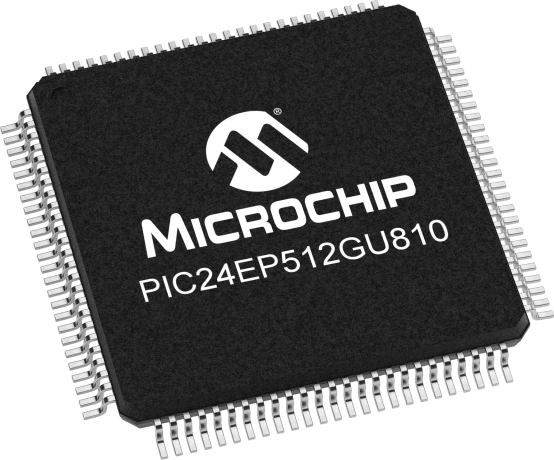

Product Images
