16-bit microcontroller featuring a 60 MHz core, 536KB FLASH memory, and 52KB RAM. This surface mount device offers 122 programmable I/Os and supports I2C, SPI, USB, CAN, UART, IrDA, and USART interfaces. Operating from a 2.95V to 3.6V supply, it includes 9 timers/counters and peripherals like DMA, POR, and WDT. Designed for automotive applications, it operates within a -40°C to 125°C temperature range and is RoHS compliant.
Frequency60MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP512GU814-E/PH technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, USB, CAN, UART, IrDA, USART
Max Frequency
60MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
536KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of I/Os
122
Number of Programmable I/O
122
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
52KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GU814-E/PH Datasheet
Download the complete datasheet for Microchip PIC24EP512GU814-E/PH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

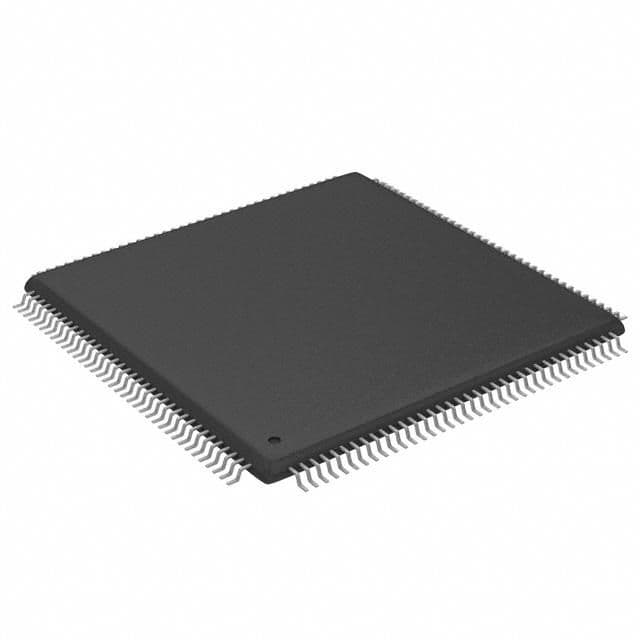

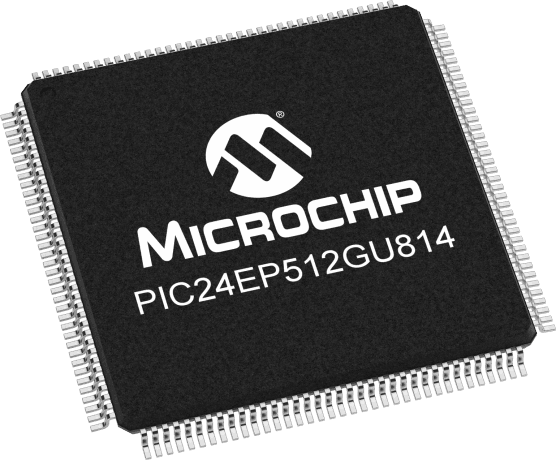

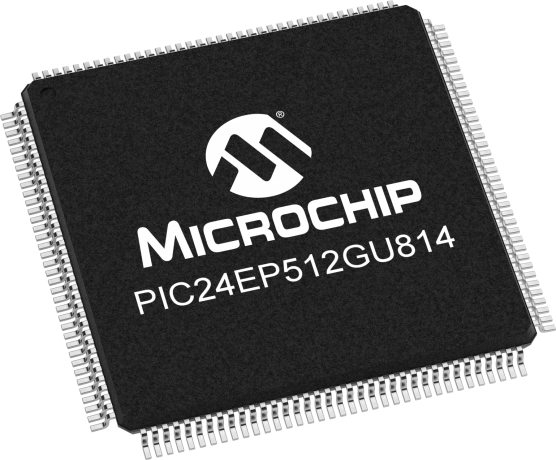

Product Images
