16-bit FLASH microcontroller featuring a 70MHz core clock speed and 64KB of FLASH memory. This MCU offers 8KB of RAM and 21 programmable I/O pins, supporting SPI, UART, SCI, I2C, IrDA, and USART interfaces. Operating from 2.95V to 3.6V, it includes 5 timers/counters and essential peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a lead-free SSOP-28, it operates across a temperature range of -40°C to 85°C.
Frequency70MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC24EP64GP202-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
70MHz
Interface
SPI, UART, SCI, I2C, IrDA, USART
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP64GP202-I/SS Datasheet
Download the complete datasheet for Microchip PIC24EP64GP202-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

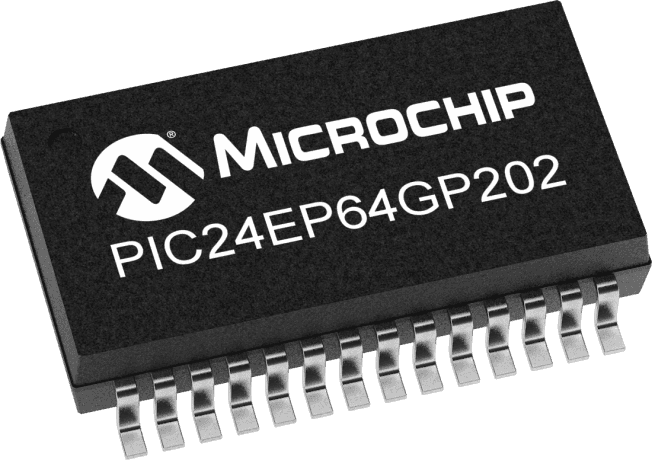

Product Images
