16-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 4KB of FLASH memory and 512B of RAM, with 18 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, IrDA, USART interfaces, 9 ADC channels, 3 timers/counters, and 1 PWM channel. The QFN package measures 5mm x 5mm with a 0.95mm height, supporting a supply voltage range of 1.8V to 3.6V and operating from -40°C to 85°C.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F04KA201-I/MQ technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Density
4KB
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, DMA
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F04KA201-I/MQ Datasheet
Download the complete datasheet for Microchip PIC24F04KA201-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

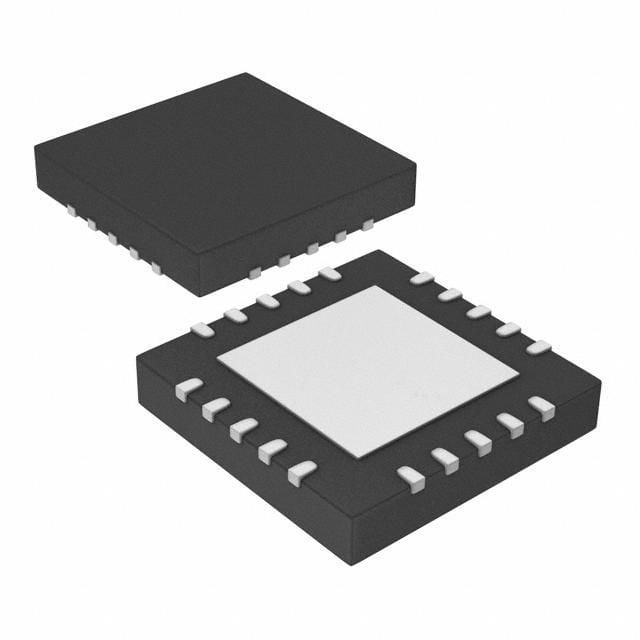

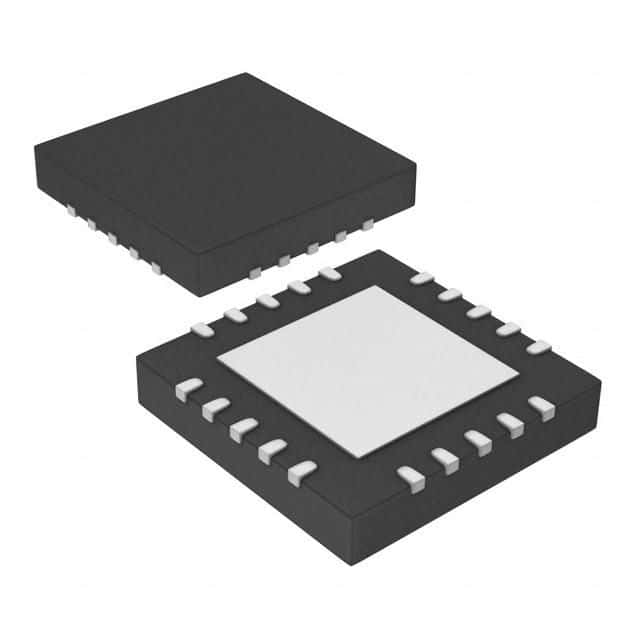

Product Images
