16-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 32MHz. This QFN-packaged MCU offers 4KB of FLASH memory, 512B of RAM, and 17 programmable I/O pins. Integrated peripherals include I2C, SPI, IrDA, UART, USART, and LIN interfaces, along with three timers/counters and a watchdog timer. Designed for a supply voltage range of 1.8V to 3.6V, it operates from -40°C to 85°C and is RoHS compliant.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC24F04KL101-I/MQ technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of I2C Channels
1
Number of Programmable I/O
17
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Package Quantity
73
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F04KL101-I/MQ Datasheet
Download the complete datasheet for Microchip PIC24F04KL101-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

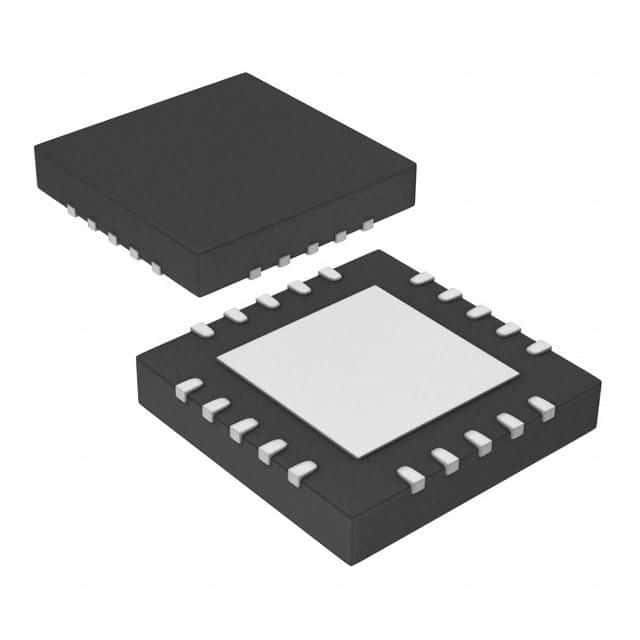

Product Images
