16-bit FLASH microcontroller featuring a 32MHz core, 4KB memory, and 512B RAM. This PIC microcontroller offers 17 programmable I/O pins and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. Operating from 1.8V to 3.6V, it includes peripherals like Brown-out Detect, POR, PWM, WDT, HLVD, and three timers. Packaged in a 20-pin SSOP, this lead-free component operates between -40°C and 85°C.
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC24F04KL101-I/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, IrDA, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 7.5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 17 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 17 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 67 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC24F |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24F04KL101-I/SS Datasheet
Download the complete datasheet for Microchip PIC24F04KL101-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

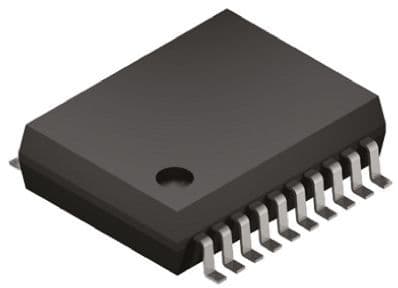

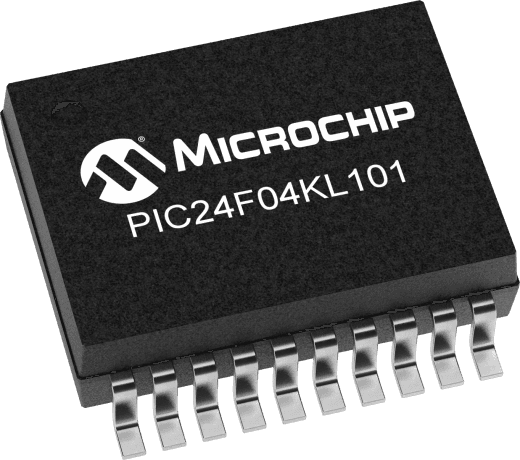

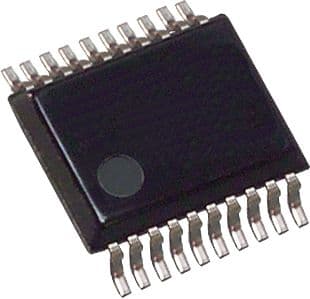

Product Images
