16-bit microcontroller featuring 8KB FLASH and 1.5KB RAM. Operates at up to 32MHz with a 1.8V to 3.6V supply voltage range. Offers I2C, SPI, IrDA, and UART/USART interfaces, along with 18 programmable I/O pins and 3 timers. Includes a single A/D converter and one PWM channel. Packaged in a 20-pin SSOP for surface mounting, this RoHS compliant component operates from -40°C to 125°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F08KA101-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
16
Number of Programmable I/O
18
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KA101-E/SS Datasheet
Download the complete datasheet for Microchip PIC24F08KA101-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

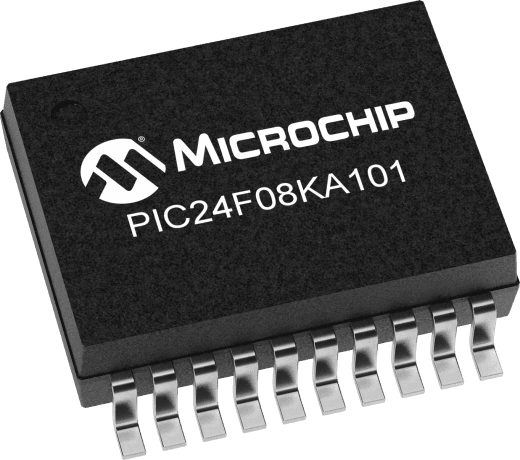

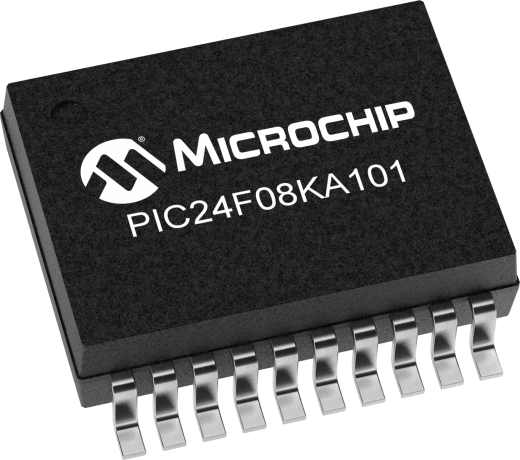

Product Images
