16-bit microcontroller featuring 8KB FLASH memory and 1.5KB RAM. Operates at up to 32MHz with a 16-bit data bus width. Offers multiple interfaces including I2C, SPI, IrDA, and UART/USART. Includes 9 ADC channels, 24 programmable I/O pins, and 3 timers. Packaged in a 28-pin SSOP for surface mounting, with an operating temperature range of -40°C to 125°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F08KA102-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
9
Number of Bits
16
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KA102-E/SS Datasheet
Download the complete datasheet for Microchip PIC24F08KA102-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

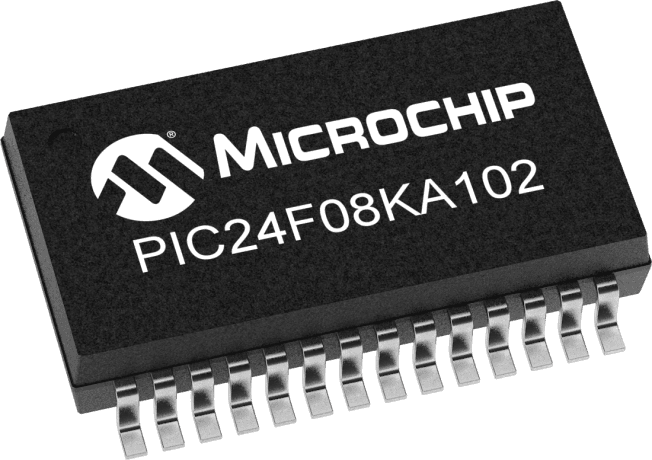

Product Images
