16-bit microcontroller featuring 8KB FLASH memory and 1.5KB RAM, operating at up to 32MHz. This PIC microcontroller offers 24 programmable I/O pins and supports I2C, SPI, IrDA, and UART interfaces. Includes 3 timers/counters, 1 PWM channel, and 9 A/D converter channels. Packaged in a 28-pin PDIP with through-hole mounting, it operates from 1.8V to 3.6V and is RoHS compliant.
Frequency32MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24F08KA102-I/SP technical specifications.
General
| Package/Case | DIP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Density | 8KB |
| Frequency | 32MHz |
| Height | 0.15inch |
| Interface | I2C, SPI, IrDA, UART, USART |
| Lead Free | Lead Free |
| Length | 35.56mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 9 |
| Number of Bits | 16 |
| Number of I/Os | 24 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 24 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 2 |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC24F |
| Termination | Through Hole |
| Watchdog Timer | Yes |
| Width | 0.295inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24F08KA102-I/SP Datasheet
Download the complete datasheet for Microchip PIC24F08KA102-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

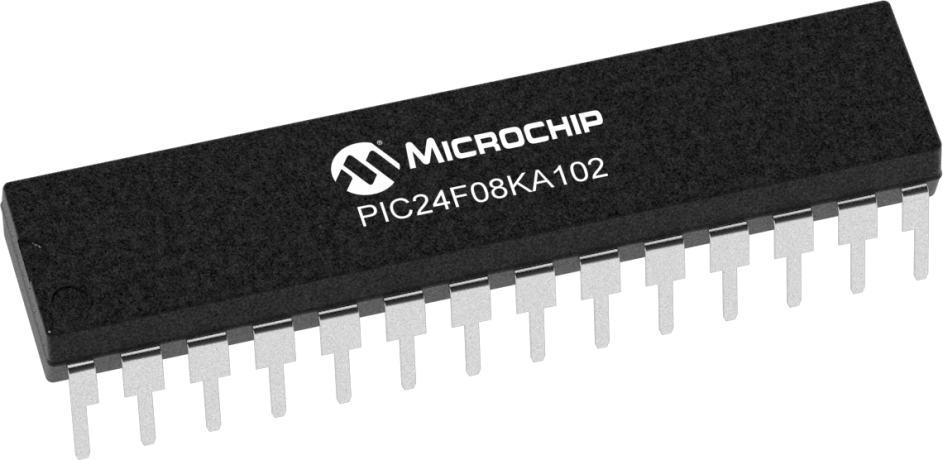

Product Images
