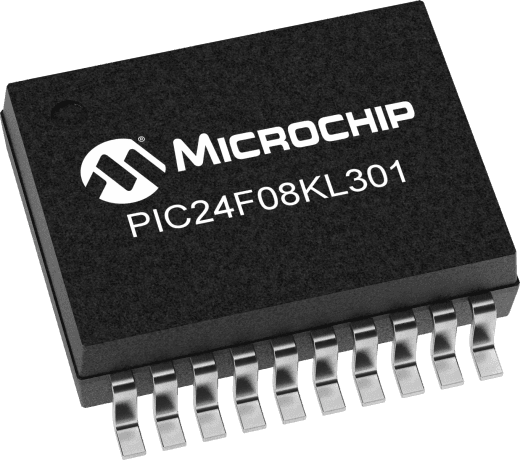

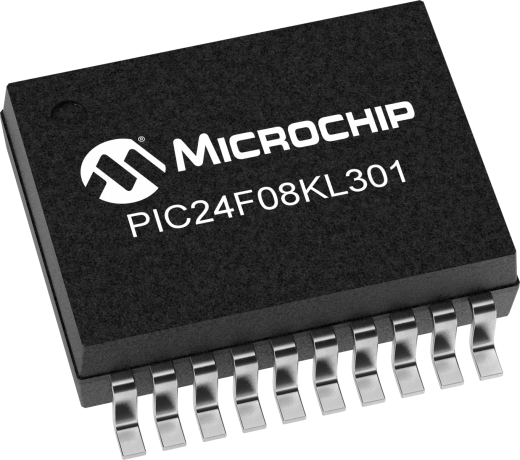

16-bit FLASH microcontroller featuring a PIC core architecture operating at up to 32MHz. This integrated circuit offers 8KB of FLASH memory and 1KB of RAM, with 18 programmable I/O pins. Connectivity includes I2C, SPI, IrDA, and UART/USART interfaces. Designed for a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V, it incorporates peripherals such as Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Packaged in a 20-pin SSOP, this lead-free and RoHS compliant component is suitable for various embedded applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC24F08KL301-I/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Interface | I2C, SPI, IrDA, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 18 |
| Number of Programmable I/O | 18 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 67 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 24F |
| Watchdog Timer | Yes |
| RoHS | Compliant |
