16-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 32MHz. This MCU offers 8KB of FLASH memory and 1KB of RAM, with 18 programmable I/O pins. Integrated peripherals include 2x I2C, 2x SPI, 2x UART, and 4 timers/counters, alongside a watchdog timer. It supports a supply voltage range of 1.8V to 3.6V and operates from -40°C to 85°C. The SSOP-20 package is lead-free and RoHS compliant.
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC24F08KL401-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
12
Number of I2C Channels
2
Number of Programmable I/O
18
Number of SPI Channels
2
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KL401-I/SS Datasheet
Download the complete datasheet for Microchip PIC24F08KL401-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

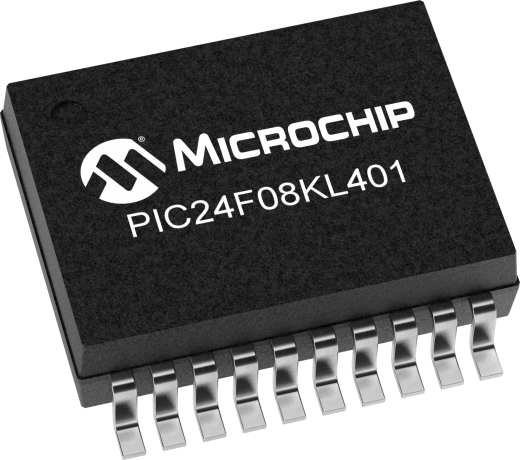

Product Images
