16-bit FLASH microcontroller featuring a 32MHz core clock speed. This surface mount device offers 16KB of FLASH memory and 1.5KB of RAM, with 18 programmable I/O pins. Integrated peripherals include I2C, SPI, IrDA, UART, USART, and a watchdog timer. Operating from 1.8V to 3.6V, it supports a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F16KA101-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Density
16KB
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
9
Number of Bits
16
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KA101-I/SS Datasheet
Download the complete datasheet for Microchip PIC24F16KA101-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

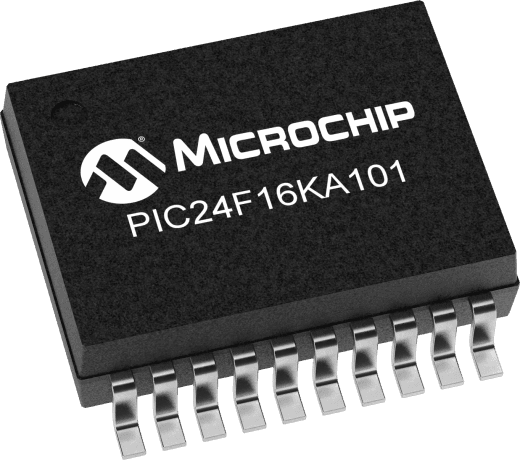

Product Images
