16-bit Flash microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 16KB of Flash memory and 1.5KB of RAM, with 24 programmable I/O pins. Integrated peripherals include I2C, SPI, IrDA, UART, USART interfaces, 9 A/D converter channels, and 3 timers/counters. The component is housed in a 6mm x 6mm QFN package, supporting a supply voltage range of 1.8V to 3.6V and operating from -40°C to 85°C.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F16KA102-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Density
16KB
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
9
Number of Bits
16
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KA102-I/ML Datasheet
Download the complete datasheet for Microchip PIC24F16KA102-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

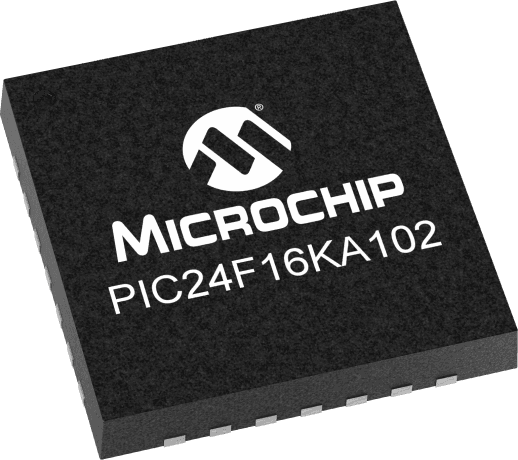

Product Images
