16-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 32MHz. This through-hole component offers 16KB of FLASH memory and 1.5KB of RAM, with 24 programmable I/O pins. Integrated peripherals include I2C, SPI, IrDA, UART, USART interfaces, 3 timers/counters, and 1 PWM channel. It supports a supply voltage range of 1.8V to 3.6V and operates from -40°C to 85°C.
Frequency32MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24F16KA102-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
16b
Density
16KB
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
9
Number of Bits
16
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Termination
Through Hole
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KA102-I/SP Datasheet
Download the complete datasheet for Microchip PIC24F16KA102-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

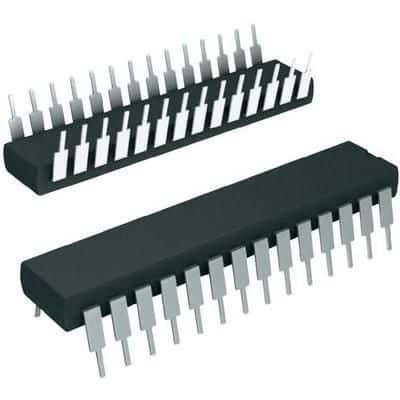

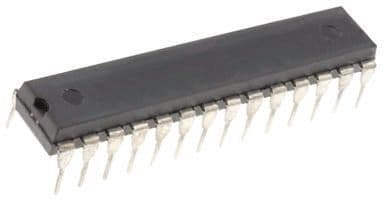

Product Images
