16-bit FLASH microcontroller featuring a 32MHz core, 16KB FLASH memory, and 2KB RAM. Offers 23 programmable I/O pins, multiple communication interfaces including I2C, SPI, UART, USART, and LIN, along with 13 ADC channels and 3 PWM channels. Designed for surface mount applications in a 28-pin SSOP package, operating from 1.8V to 3.6V with a temperature range of -40°C to 85°C. Includes integrated peripherals such as brown-out detect, POR, WDT, and HLVD.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F16KA302-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
16
Number of I/Os
23
Number of I2C Channels
2
Number of Programmable I/O
23
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KA302-I/SS Datasheet
Download the complete datasheet for Microchip PIC24F16KA302-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

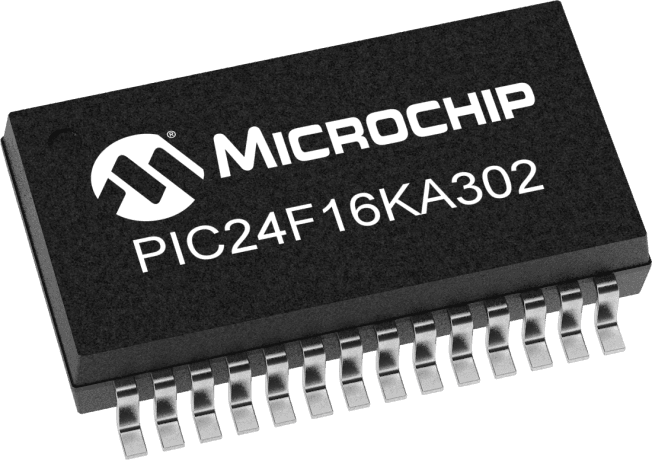

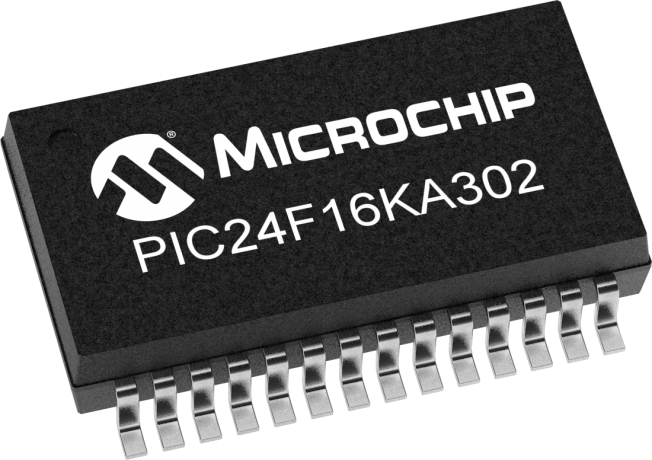

Product Images
