16-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface-mount device offers 32KB of FLASH memory and 2KB of RAM, with 24 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 13 ADC channels and 3 PWM channels. Designed for a wide operating temperature range of -40°C to 85°C, it supports supply voltages from 1.8V to 3.6V and is RoHS compliant.
Frequency32MHz
PackageSOIC
Current3.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F32KA302-I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
2.35mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
24
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, LVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Supply Current
3.4mA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F32KA302-I/SO Datasheet
Download the complete datasheet for Microchip PIC24F32KA302-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

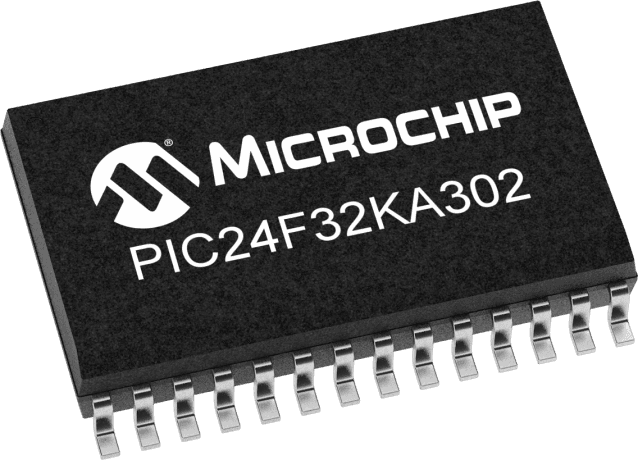

Product Images
