16-bit FLASH microcontroller featuring a PIC core architecture operating at up to 32MHz. This through-hole component offers 32KB of FLASH memory and 2KB of RAM, with 23 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 3 PWM channels and 5 timers/counters. Designed for a wide operating temperature range of -40°C to 85°C and supply voltages from 1.8V to 3.6V, this RoHS compliant microcontroller is housed in a 28-pin PDIP package.
Frequency32MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24F32KA302-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
1.4inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
16
Number of I/Os
23
Number of I2C Channels
2
Number of Programmable I/O
23
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F32KA302-I/SP Datasheet
Download the complete datasheet for Microchip PIC24F32KA302-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

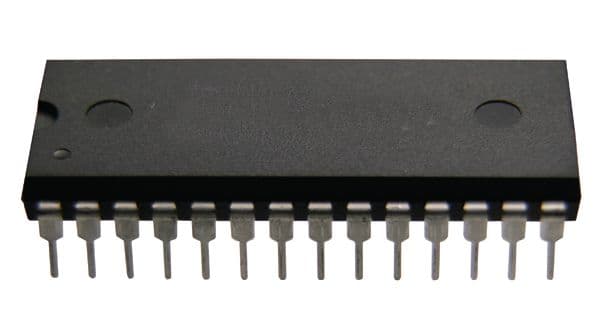

Product Images
