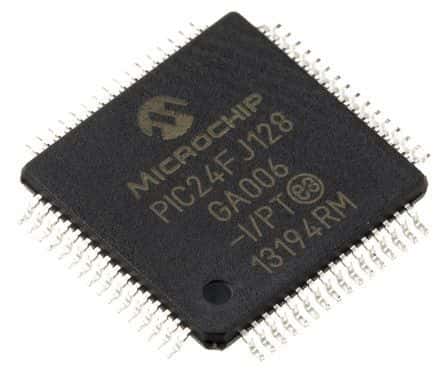

16-bit microcontroller featuring 128KB FLASH memory and 8KB SRAM. Operates at up to 32MHz with a 16-bit address and data bus. Offers 53 I/Os, including 2 I2C, 2 SPI, and 2 UART interfaces, plus 5 PWM channels and 5 timers. Supports surface mount installation in a 64-pin TQFP package with a 0.5mm lead pitch. Includes internal oscillator, brown-out detect, POR, and WDT peripherals.
Frequency16MHz
PackageTQFP
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GA006-I/PT technical specifications.
General
Access Time
16us
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
128KB
Frequency
16MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH, , SRAM
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
54
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
15mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GA006-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GA006-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
