16-bit Flash Microcontroller (MCU) operating at 32MHz. Features 128KB Flash memory, 16KB RAM, and 53 programmable I/Os. Includes multiple interfaces such as I2C (3 channels), SPI (3 channels), and UART/USART (4 channels). Offers 16 A/D converter channels, 9 PWM channels, and 5 timers/counters. Packaged in a 64-pin TQFP (10x10mm, 1mm height) for surface mounting, with an operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GA106-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
128KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
53
Number of I2C Channels
3
Number of Programmable I/O
53
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GA106-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GA106-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

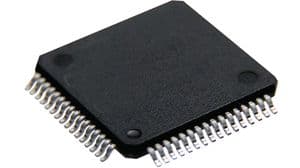

Product Images
