16-bit PIC RISC microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 32MHz with a 2V to 3.6V supply voltage range. Includes 21 I/Os, 10 ADC channels, 5 timers, and multiple communication interfaces including SPI, I2C, UART, and USART. Packaged in a 28-pin SPDIP for through-hole mounting, this security-focused IC supports internal oscillators and offers peripherals like DMA and PWM.
Frequency32MHz
PackageDIP
Current5.7mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GA202-I/SP technical specifications.
General
| Address Bus Width | 16b |
| Package/Case | DIP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Height | 0.15inch |
| Interface | SPI, I2C, IrDA, UART, USART |
| Lead Free | Lead Free |
| Length | 35.56mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of ADC Channels | 10 |
| Number of I/Os | 21 |
| Number of I2C Channels | 2 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LVD |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 24F |
| Supply Current | 5.7mA |
| Width | 0.295inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ128GA202-I/SP Datasheet
Download the complete datasheet for Microchip PIC24FJ128GA202-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

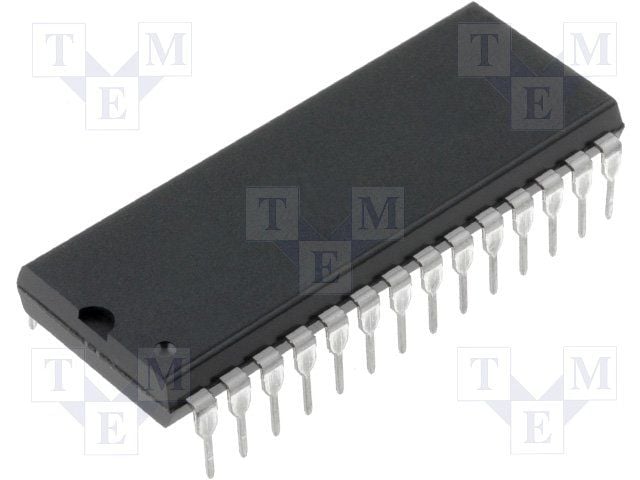

Product Images
