16-bit microcontroller featuring a 32MHz core frequency and 128KB of FLASH memory. This surface mount device offers 16 analog-to-digital converter channels, 52 programmable I/O pins, and multiple communication interfaces including I2C, SPI, UART, and USB. Operating from 2V to 3.6V, it includes peripherals like PWM, a watchdog timer, and brown-out detection. Packaged in a 64-pin TQFP with dimensions of 10mm x 10mm and a height of 1.05mm, this RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GB106-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
128KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, USB, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
52
Number of I2C Channels
3
Number of Programmable I/O
52
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GB106-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GB106-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

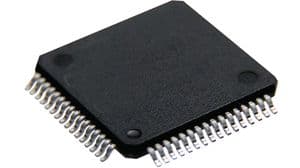

Product Images
