16-bit PIC RISC microcontroller featuring 128KB Flash memory and 8KB RAM. Operates at up to 32MHz with a 3.3V supply voltage, supporting a wide temperature range of -40°C to 85°C. Offers multiple interfaces including I2C (2 channels), SPI (3 channels), UART (4 channels), and USB (1 channel). Includes 9 ADC channels, 6 PWM channels, and 5 timers/counters, with peripherals like DMA and WDT. Packaged in a 28-pin VQFN for surface mounting.
Frequency32MHz
PackageVQFN
Current5.7mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GB202-I/MM technical specifications.
General
Address Bus Width
16b
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
20
Number of I2C Channels
2
Number of Programmable I/O
20
Number of PWM Channels
6
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Number of USB Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, HLVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Supply Current
5.7mA
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GB202-I/MM Datasheet
Download the complete datasheet for Microchip PIC24FJ128GB202-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

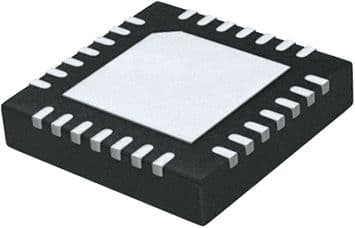

Product Images
