PIC24FJ128GB202-I/SP

Datasheet

16-bit Secure MCU, 128KB Flash, 32MHz, 20 I/O, USB, SPI, I2C, DIP

Microchip

PIC24FJ128GB202-I/SP

Name: PIC24FJ128GB202-I/SP Microchip
Brand: Microchip
SKU: PIC24FJ128GB202-I/SP

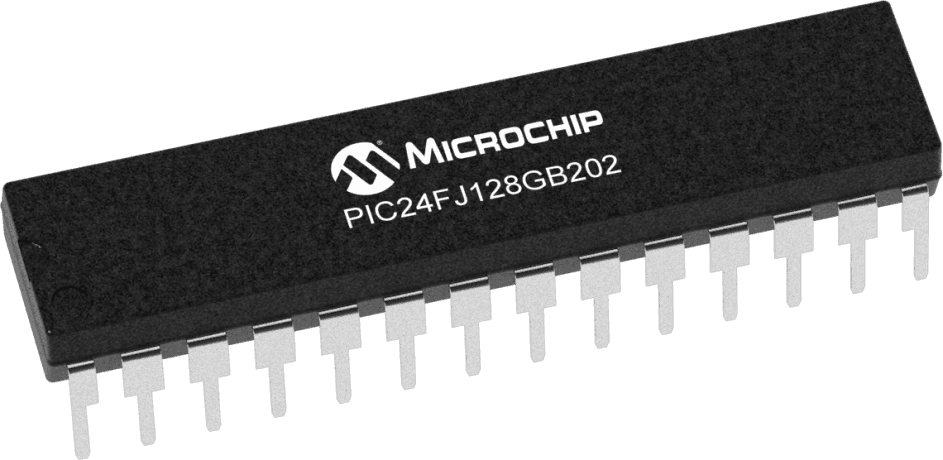

16-bit Secure MCU, 128KB Flash, 32MHz, 20 I/O, USB, SPI, I2C, DIP

16-bit secure microcontroller featuring a PIC RISC core, 128KB Flash memory, and 8KB RAM. Operates at up to 32MHz with a 3.3V supply voltage, supporting a wide temperature range from -40°C to 85°C. Offers extensive connectivity with I2C (2 channels), SPI (3 channels), USB (1 channel), IrDA, UART (4 channels), and USART interfaces. Includes 9 ADC channels, 6 PWM channels, 5 timers/counters, and 20 programmable I/Os. Packaged in a 28-pin SPDIP for through-hole mounting.

Frequency32MHz

PackageDIP

Current5.7mA

MountingThrough Hole

Quick Jump:

Technical Specifications

Microchip PIC24FJ128GB202-I/SP technical specifications.

General

Address Bus Width	16b
Package/Case	DIP
Core Architecture	PIC
Data Bus Width	16b
Frequency	32MHz
Height	0.15inch
Interface	I2C, SPI, USB, IrDA, UART, USART
Lead Free	Lead Free
Length	35.56mm
Max Frequency	32MHz
Max Operating Temperature	85°C
Max Supply Voltage	3.6V
Memory Size	128KB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Min Supply Voltage	2V
Mount	Through Hole
Number of ADC Channels	9
Number of I/Os	20
Number of I2C Channels	2
Number of Programmable I/O	20
Number of PWM Channels	6
Number of SPI Channels	3
Number of Timers/Counters	5
Number of UART Channels	4
Number of USB Channels	1
Operating Supply Voltage	3.3V
Oscillator Type	Internal
Package Quantity	15
Packaging	Rail/Tube
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, DMA, LVD
Radiation Hardening	No
RAM Size	8KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PIC® XLP™ 24F
Supply Current	5.7mA
Watchdog Timer	Yes
Width	0.295inch
