16-bit PIC RISC microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 32MHz with a 3.3V supply voltage, suitable for automotive applications. Offers extensive connectivity with I2C, SPI, UART, USART, IrDA, and USB interfaces. Includes 34 programmable I/Os, 12 ADC channels, 6 PWM channels, and 5 timers. Packaged in a 44-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
Current5.7mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GB204-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
34
Number of I2C Channels
2
Number of Programmable I/O
34
Number of PWM Channels
6
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Number of USB Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, HLVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Supply Current
5.7mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ128GB204-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ128GB204-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

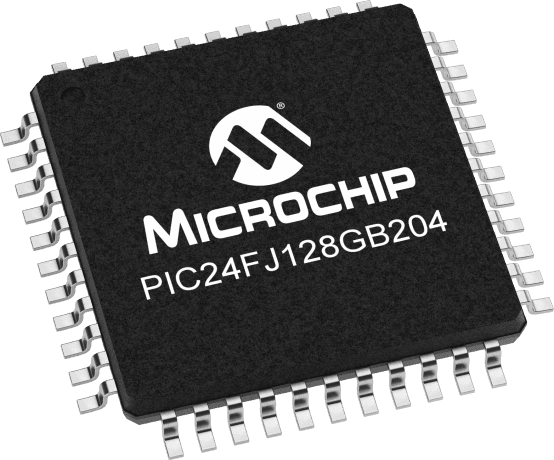

Product Images
