16-bit microcontroller featuring a PIC CPU core, operating at up to 32MHz. This QFN-packaged device offers 128KB of FLASH memory and 96KB of RAM, with a 16-bit address and data bus. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with USB, IrDA, and 16 ADC channels. It supports a supply voltage range of 2.2V to 3.6V and operates from -40°C to 85°C.
Frequency32MHz
PackageQFN
Current12mA
Quick Jump:
Technical Specifications
Microchip PIC24FJ128GB206-I/MR technical specifications.
General
| Address Bus Width | 16b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USB, IrDA, USART |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.2V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 16 |
| Number of Bits | 16 |
| Number of I/Os | 52 |
| Number of I2C Channels | 3 |
| Number of Programmable I/O | 29 |
| Number of PWM Channels | 9 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 4 |
| Oscillator Type | Internal |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C |
| Radiation Hardening | No |
| RAM Size | 96KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC24F |
| Supply Current | 12mA |
| Watchdog Timer | Yes |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ128GB206-I/MR Datasheet
Download the complete datasheet for Microchip PIC24FJ128GB206-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

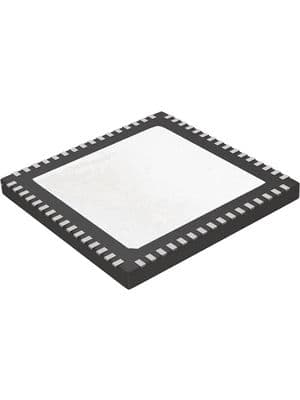

Product Images
