16-bit microcontroller featuring a 32MHz core, 16KB FLASH memory, and 4KB RAM. This surface mount device offers 21 programmable I/Os, supporting I2C, SPI, IrDA, and UART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, LVD, and 5 timers/counters. Operating within a 2V to 3.6V supply range, it is RoHS compliant and designed for a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16GA002-I/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, IrDA, UART, USART |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 10 |
| Number of I/Os | 21 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 21 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C |
| Radiation Hardening | No |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 24F |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ16GA002-I/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ16GA002-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

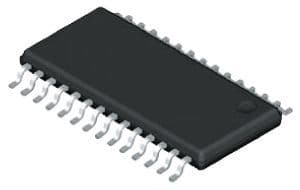

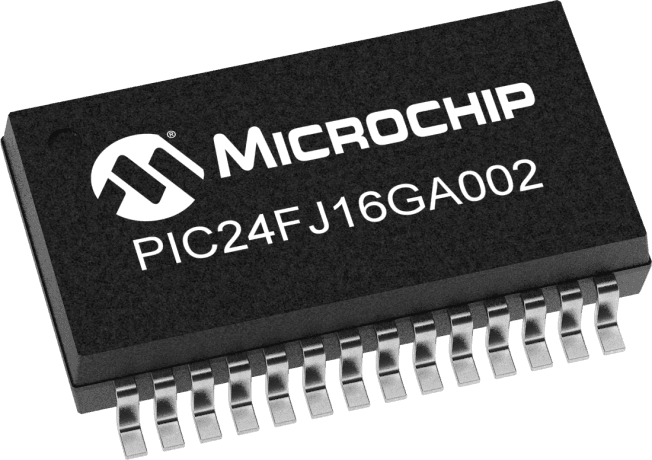

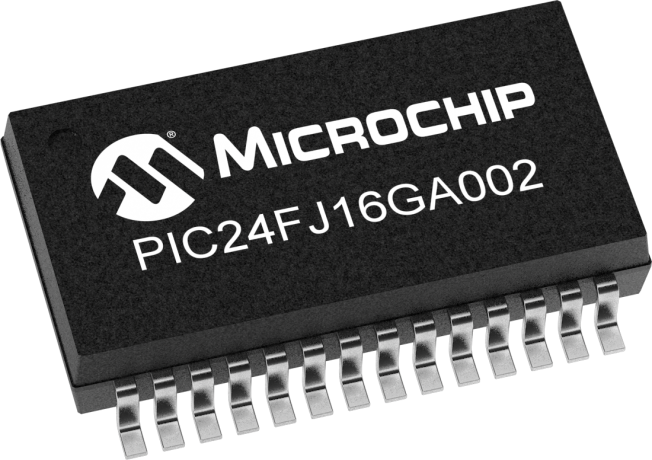

Product Images
